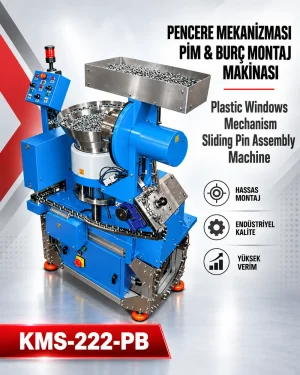

Automatic Pin and Bush Assembly Machine
Automatic Pin and Bush Assembly Machine
Developed for espagnolette locking systems used in PVC doors and windows, this machine automatically inserts and assembles pins and bushes. Continuous automatic feeding supports high-volume, cost-efficient component production.
- ModelKMS-222-PB
- Capacity150–155 pcs/min
- Setting Force2 tonnes / 5 mm²
- Air Pressure6 bar
- Power SupplyAC 380 V
- Net Weight300 kg
- Machine Dimensions1650 × 1350 × 650 mm
For information about this machine:
+90 212 691 11 31 • kms@kilicoglumakina.com.tr
+90 212 691 11 31 • kms@kilicoglumakina.com.tr
Developed for espagnolette locking systems used in PVC doors and windows, this machine automatically inserts and assembles pins and bushes. Continuous automatic feeding supports high-volume, cost-efficient component production.
Key Features
- Up to 7,200 cycles per 8-hour shift
- Designed for continuous 24-hour operation
- Braked geared motor driving the upper punch
- Assembly disc combines pins and bushes from separate hoppers
- Speed-controlled geared motor for the assembly disc
- Vibratory orientation of assembled components
- Single-cycle or continuous automatic operation
- Adjustable pressing depth
