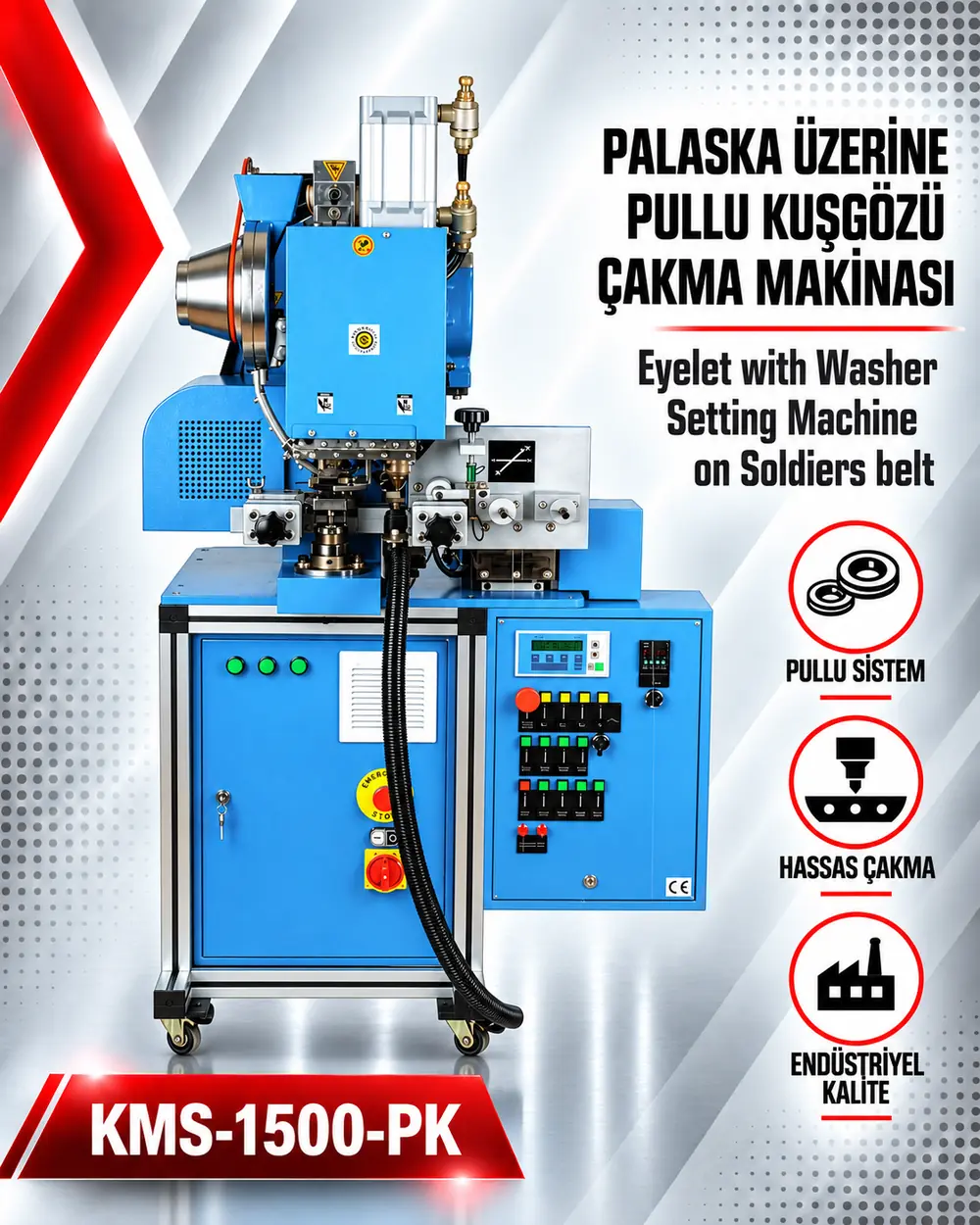

CNC Webbing Eyelet and Washer Setting Machine
CNC Webbing Eyelet and Washer Setting Machine
This PLC-controlled machine advances webbing automatically, punches and heat-seals the hole edge, then sets the eyelet and washer. Automatic component feeding, laser positioning and material sensors support continuous processing of webbing supplied in rolls.
- ModelKMS-1500-PK
- Capacity45–60 pcs/min
- Setting Force2 tonnes / 5 mm²
- Punching Force430 kg / 1 cm²
- Throat Depth7.5 cm
- PowerAC 380 V / 0.55 kW / 1/3 HP
- Net Weight296 kg
- Dimensions170 × 80 × 80 cm
For information about this machine:
+90 212 691 11 31 • kms@kilicoglumakina.com.tr
+90 212 691 11 31 • kms@kilicoglumakina.com.tr
This PLC-controlled machine advances webbing automatically, punches and heat-seals the hole edge, then sets the eyelet and washer. Automatic component feeding, laser positioning and material sensors support continuous processing of webbing supplied in rolls.
Key Features
- Three-motor system
- Pneumatic system with five cylinders and six sensors
- Adjustable slide and spacing controls
- Up to 24,000 cycles per 8-hour shift
- Designed for continuous 24-hour operation
- Adjustable setting height
- Configurable for different webbing types
- Three PLC-controlled programmes with expandable memory
- Laser-guided punching
- Guarded punching and setting area
- Heated punch for clean, fray-resistant holes
